RS150 Alpine Rucksack

Sizes: Adult (adjustable to fit)

Skill Level:  4, Medium

A sewing pattern for a versatile and compact load carrying rucksack. Although it has no internal frame this is not a book bag! Designed for those activities demanding bulky gear and freedom of movement.

There have been three testing grounds for this pack. First backcountry skiing. The triple compression straps with release buckets make loading and unloading skis fast and secure. The narrow profile and sternum strap keep things out of he way and stable. Ice tool loops and crampon lash points are there for the early bird spring skiers
who want to be on top in time for the first sun-softened turns. For an afternoon of spreading tracks across the same bowl, the fanny pack option stows the climbing skins on the way down and the windbreaker on the way up.

Second, super light backcountry travel and mountaineering. For minimalist summer backpacking or shorter climbs, this capacity encourages you to travel light and fast. Just large enough for a light sleeping bag, bivy sack, clothes and food yet also able to attach ice tools, shovel, pickets and pad.

Third, rock climbing. Rock climbers are notorious for generating ridiculously heavy “day packs”. Small zippered packs just aren’t up to the task of toting that much hardware. With the rope, shoes and rack packed and balanced, you can hike to the base of the climb without feeling like a walking gear closet. Converting the top pocket to fanny pack mode is a great way to take water, a windbreaker or spare shoes to the top as well.

Features:

• 2200 cubic inch capacity
• Narrow profile for unrestricted movement (27” x 12” x 9” loaded dimensions)

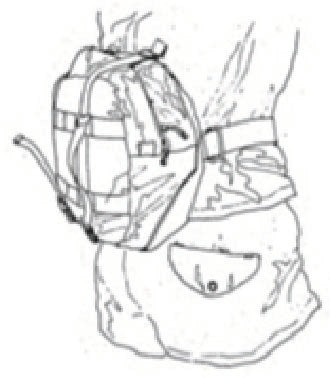

• Detachable top pocket converts to fanny pack
• Optional sternum strap and ice tool loops
• Padded, curved shoulder straps
• 3 compression straps with release buckles quickly accommodate skis, hardware, a pad, etc.
• Removable foam Back Panel
• Generous webbing ladders retain strap-on versatility
• Directions to tailor harness to individual back lengths

Suggested Fabrics:
Extremely rugged use (but weighs more): 1000d fabric for the Outer fabric and 600d or 500d fabric for the Textured pieces
Normal rugged use: 500d or 600d fabric for the outer fabric and packcloth for the textured pieces

Fabric Requirements:
Outer fabric (all one color), 60" (150cm) wide:  28" (71.1cm)
Textured fabric (for Shoulder strap casing, Back Panel, and underside of Top Pocket/Fanny Pack): 18" (45.7cm)

Notions:

• 425" (about 12 yards/11m) - 1" Regular Weight Webbing
• 71" (about 6 yards/5.5m) - additional 1" Regular Weight Weight Webbing (optional for Ice tool straps & Sternum Strap)
• 7" (17.8cm) - 1" Tubular Webbing
• 41" (104cm) - 1-1/2" Regular Weight Webbing
• 52" (132cm) - 2” Regular Weight Webbing
• 12" (30.5cm) - 3” Regular Weight Webbing
• 63" (160cm) or 1.75 yards (1.6m) - Drawcord
• 210" (533.4cm) or about 6 yards (5.5m) - Grosgrain ribbon (for taping interior seams)
• 2" (5.1cm) - 3/4” Hook and loop fastener
• 20" (50.8) - #5 or #8 Coil Zipper Tape
• 2 - #5 or #8 Coil Zipper Sliders/Pulls

• 3 - 1" Triglides or metal sliders
• 2 - 1-1/2" Triglides or metal sliders

• 3 - 1" Loop
• 8 - 1" Side Release Buckles

• 1 - 1" Side Release Buckle (for optional for Sternum Strap)

• 1 - 1-1/2" Side Release Buckle

• 1 - 2" Side Release Buckle
• 2 - 1" Double bar buckle
• 2 - 1" Double bar buckle(for optional for Ice Tool Straps)

• 1 - Toggle or Cordlock

• 12 - Grommets
• 11” x 22” - 3/8” or 1/2” thick closed cell foam for Back Panel
• 7” x 15” - 1/2” thick closed cell foam for Shoulder Straps
• Thread - To match the pack color and black for the webbing

This is a paper pattern.  We will have a PDF version available in the next few weeks.  As well as an improved paper pattern version.
